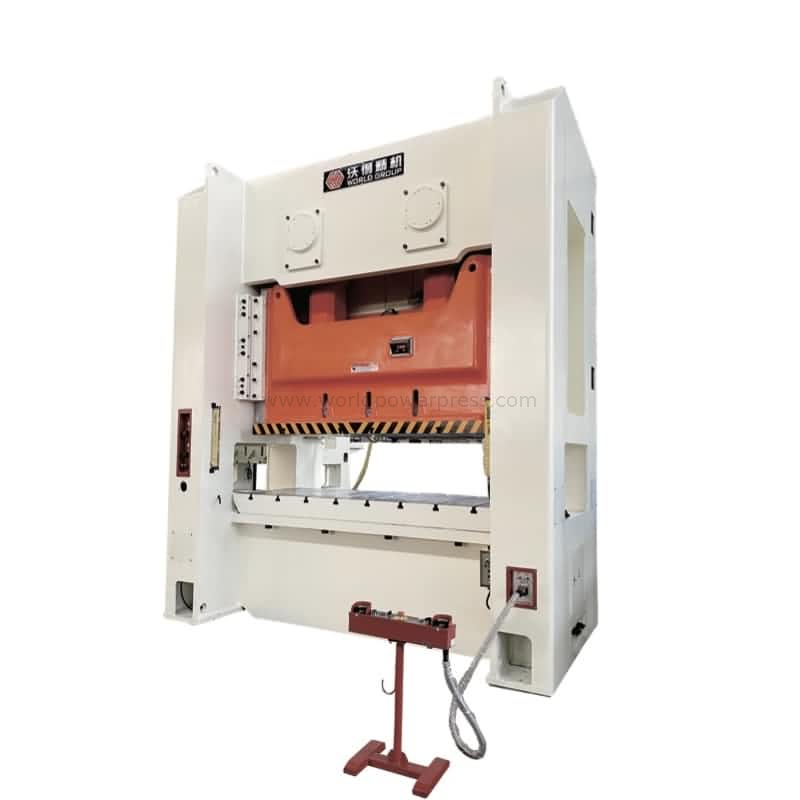

JW36-250 adalah mesin press 250 ton dengan transmisi engkol ganda. Badan las baja h bingkai H, silang yang terletak crankshafts dengan dua gigi besar di bagian belakang. Presisi tinggi dan cocok untuk stamping die progresif.
Ukuran -BIG Ukuran cocok untuk stamping die progresif
-H tipe bingkai mono-blok, baja dilas
-Double Crank Cross terletak
Kopling dan rem pneumatik tipe
-Spesifikasi khusus disesuaikan
Fitur Mesin Press Double Crank Double 250ton
-8 menghadapi panduan ram, presisi tinggi
Ukuran -BIG Ukuran cocok untuk stamping die progresif
-H tipe bingkai mono-blok, baja dilas
-Double Crank Cross terletak
Kopling dan rem pneumatik tipe
-Spesifikasi khusus disesuaikan
Model
JW36-250
Kapasitas nominal
2500kn
Titik tonase dinilai
7mm
Panjang stroke
280mm
Kecepatan stroke
20-35spm
Ukuran Bolster
2500mm x 1000mm
Area geser
2200mm x 900mm
Sisi terbuka
950mm x 460mm
Max. Tutup tinggi
550mm
Penyesuaian geser
120mm
Tenaga motor
30kw
