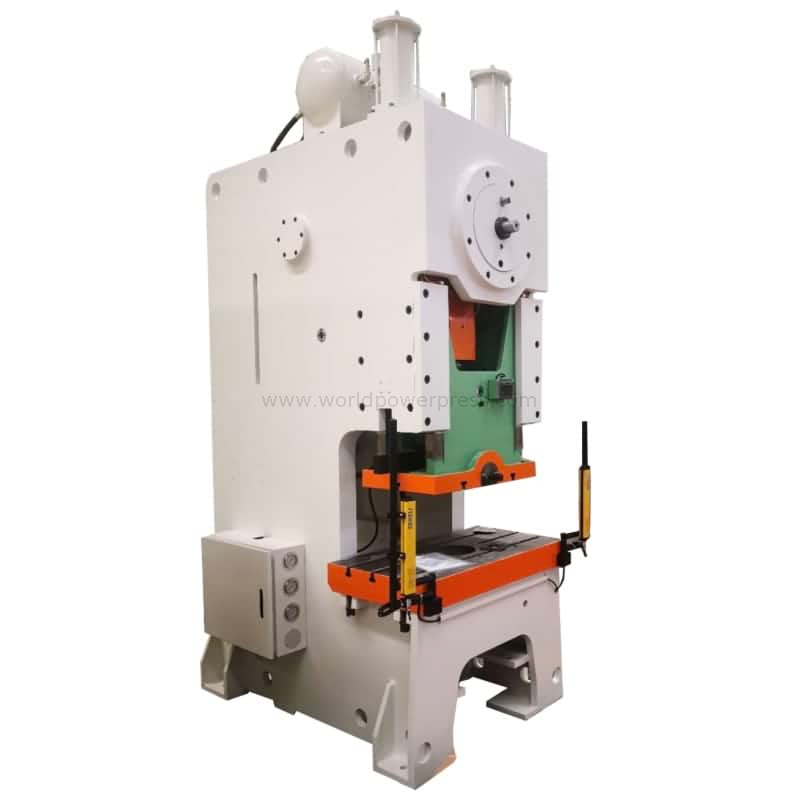

JH21-80L
-Variable Stroke Length: 10mm/40mm/75mm/106mm/130mm/145mm/150mm
Kopling dan rem pneumatik gabungan gabungan, mudah untuk dipelihara

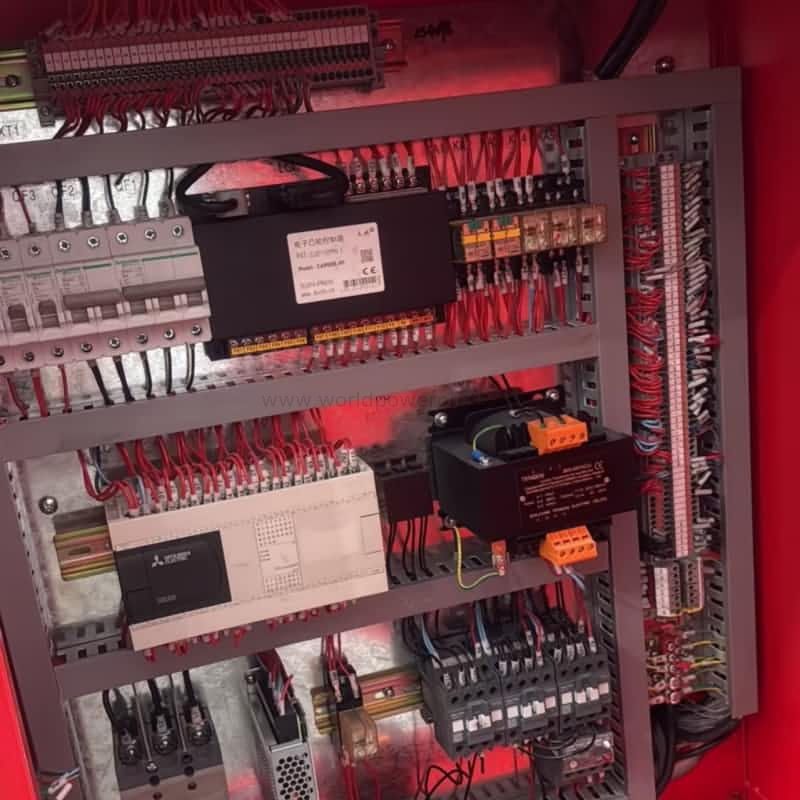

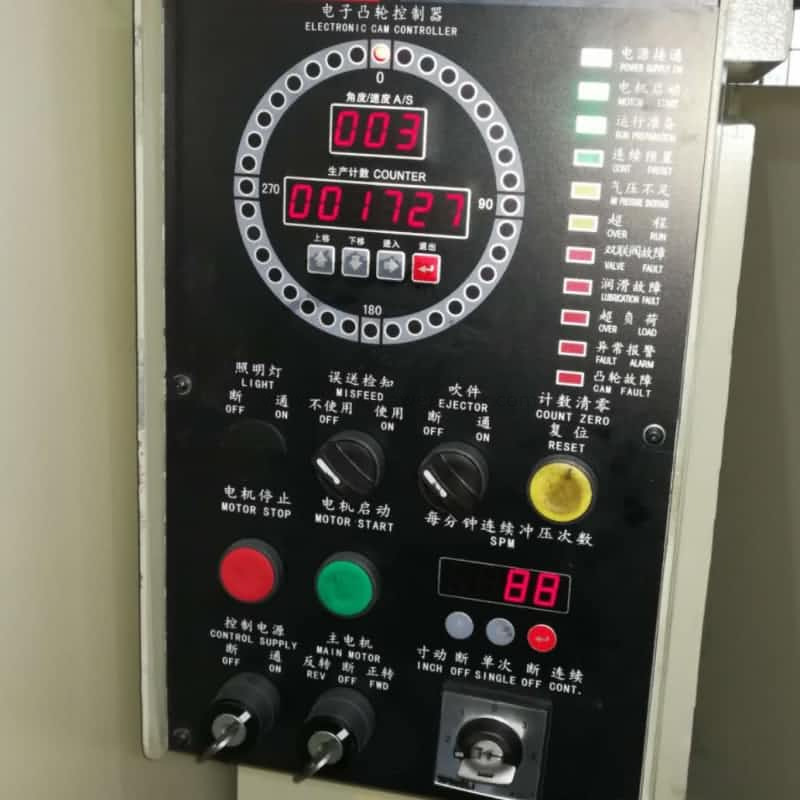

Kontrol -PLC dengan pengontrol cam listrik
-8 Wajah Panduan Slide, Presisi Tinggi
| JH21-80L | ||||
| Kapasitas | kn | 800 | ||
| Stroke nominal | mm | 5 | ||
| Geser stroke | mm | 10-150 | ||
| SPM | Tetap | Min-1 | 60 | |
| Variabel | Min-1 | 50-70 | ||
| Max. Tinggi mati | mm | 320 | ||
| Penyesuaian tinggi die | mm | 80 | ||
| Kedalaman tenggorokan | mm | 300 | ||
| Antara kolom | mm | 640 | ||
| Memperkuat | Lr | mm | 1000 | |
| Fb | mm | 580 | ||
| Thk | mm | 120 | ||
| Pembukaan Bolster | mm | φ200 × 40 | ||
| (Up Hole Dia. × dpth × Low Hole Dia.) | × φ180 | |||
| Area geser | Lr | mm | 710 | |
| Fb | mm | 440 | ||
| Lubang betis | Dia. | mm | φ50 | |
| Dpth | mm | 80 | ||
| Daya motor utama | KW | 7.5 | ||
| Dimensions | Fb | mm | 1750 | |
| Lr | mm | 1310 | ||
| H | mm | 3150 | ||
| Berat bersih | kg | 8500 | ||
-Variable Stroke Length: 10mm/40mm/75mm/106mm/130mm/145mm/150mm
Kopling dan rem pneumatik gabungan gabungan, mudah untuk dipelihara
Kontrol -PLC dengan pengontrol cam listrik
-8 Wajah Panduan Slide, Presisi Tinggi
| JH21-80L | ||||
| Kapasitas | kn | 800 | ||
| Stroke nominal | mm | 5 | ||
| Geser stroke | mm | 10-150 | ||
| SPM | Tetap | Min-1 | 60 | |
| Variabel | Min-1 | 50-70 | ||
| Max. Tinggi mati | mm | 320 | ||
| Penyesuaian tinggi die | mm | 80 | ||
| Kedalaman tenggorokan | mm | 300 | ||
| Antara kolom | mm | 640 | ||
| Memperkuat | Lr | mm | 1000 | |
| Fb | mm | 580 | ||
| Thk | mm | 120 | ||
| Pembukaan Bolster | mm | φ200 × 40 | ||
| (Up Hole Dia. × dpth × Low Hole Dia.) | × φ180 | |||
| Area geser | Lr | mm | 710 | |
| Fb | mm | 440 | ||
| Lubang betis | Dia. | mm | φ50 | |
| Dpth | mm | 80 | ||
| Daya motor utama | KW | 7.5 | ||
| Dimensions | Fb | mm | 1750 | |
| Lr | mm | 1310 | ||
| H | mm | 3150 | ||
| Berat bersih | kg | 8500 | ||
