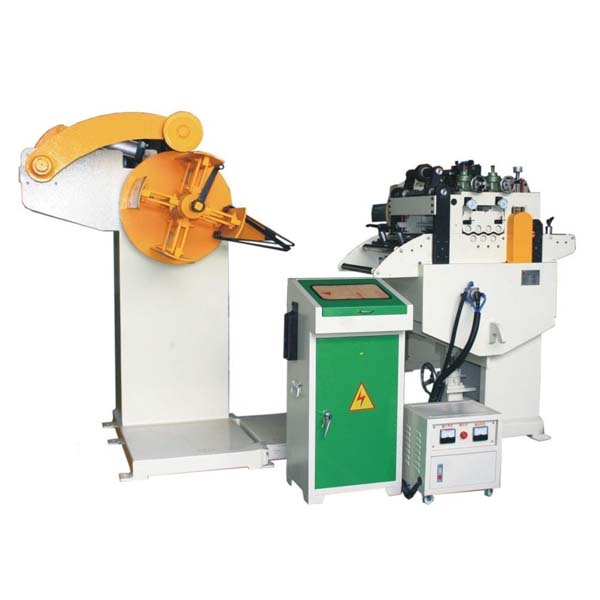

Sncf
| Item/model | SNCF2-300 | SNCF2-400 | SNCF2-500 | TNCF2-600 |
| Lebar materi (mm) | 75-300 | 75-400 | 75-500 | 75-600 |
| Ketebalan material (mm) | 0.3-2.3 | |||
| Max. Berat kumparan (kg) | 2t | 3t | ||
| Berat dapat disesuaikan | ||||
| Coil L.D. (mm) | 508 | |||
| Max. Coil O.D. (mm) | 1200 | |||
| Max.speed (m/mnt) | 16 | |||
| Akurasi pitch feed (mm) | ± 0,15 | |||
| Gulungan pakan | Upper1 / Lower1 | |||
| Meluruskan GULUNGAN | Upper5 / Lower4 | |||
| Voltase | 380VAC / 60Hz | |||
| Catu daya udara | 5kg / cm² | |||
| Ekspansi Uncoiler | Roda tangan | |||
| Motor Servo (KW) | AC1.8 | AC2.9 | ||
| Uncoiler Motor (KW) | 1,5 kW | |||
| Garis lulus | ± 60 mm | |||
| Item/model | SNCF3-300 | SNCF3-400 | SNCF3-500 | SNCF3-600 |
| Lebar materi (mm) | 75-300 | 75-400 | 75-500 | 75-600 |
| Ketebalan material (mm) | 0.4 - 3.2 | |||
| Max.coil Weight (kg) | 2t | 3t | ||
| Coil L.D. (mm) | 508 | |||
| Max.Coil O.D. (mm) | 1200 | |||
| Max.speed (m/mnt) | 16 | |||
| Akurasi pitch feed (mm) | ± 0,15 | |||
| Gulungan pakan | Upper1 / Lower1 | |||
| Meluruskan GULUNGAN | Upper5 / Lower4 | Upper4 / Lower3 | ||
| Voltase | 380VAC / 60Hz | |||
| Catu daya udara | 5kg / cm² | |||
| Ekspansi Uncoiler | Roda tangan | |||
| Motor Servo (KW) | AC1.8 | AC2.9 | ||
| Uncoiler Motor (KW) | 1,5 kW | |||
| Garis lulus | ± 60 mm | |||
| Item/model | SNCF2-300 | SNCF2-400 | SNCF2-500 | TNCF2-600 |
| Lebar materi (mm) | 75-300 | 75-400 | 75-500 | 75-600 |
| Ketebalan material (mm) | 0.3-2.3 | |||
| Max. Berat kumparan (kg) | 2t | 3t | ||
| Berat dapat disesuaikan | ||||
| Coil L.D. (mm) | 508 | |||
| Max. Coil O.D. (mm) | 1200 | |||
| Max.speed (m/mnt) | 16 | |||
| Akurasi pitch feed (mm) | ± 0,15 | |||
| Gulungan pakan | Upper1 / Lower1 | |||
| Meluruskan GULUNGAN | Upper5 / Lower4 | |||
| Voltase | 380VAC / 60Hz | |||
| Catu daya udara | 5kg / cm² | |||
| Ekspansi Uncoiler | Roda tangan | |||
| Motor Servo (KW) | AC1.8 | AC2.9 | ||
| Uncoiler Motor (KW) | 1,5 kW | |||
| Garis lulus | ± 60 mm | |||
| Item/model | SNCF3-300 | SNCF3-400 | SNCF3-500 | SNCF3-600 |
| Lebar materi (mm) | 75-300 | 75-400 | 75-500 | 75-600 |
| Ketebalan material (mm) | 0.4 - 3.2 | |||
| Max.coil Weight (kg) | 2t | 3t | ||
| Coil L.D. (mm) | 508 | |||
| Max.Coil O.D. (mm) | 1200 | |||
| Max.speed (m/mnt) | 16 | |||
| Akurasi pitch feed (mm) | ± 0,15 | |||
| Gulungan pakan | Upper1 / Lower1 | |||
| Meluruskan GULUNGAN | Upper5 / Lower4 | Upper4 / Lower3 | ||
| Voltase | 380VAC / 60Hz | |||
| Catu daya udara | 5kg / cm² | |||
| Ekspansi Uncoiler | Roda tangan | |||
| Motor Servo (KW) | AC1.8 | AC2.9 | ||
| Uncoiler Motor (KW) | 1,5 kW | |||
| Garis lulus | ± 60 mm | |||
