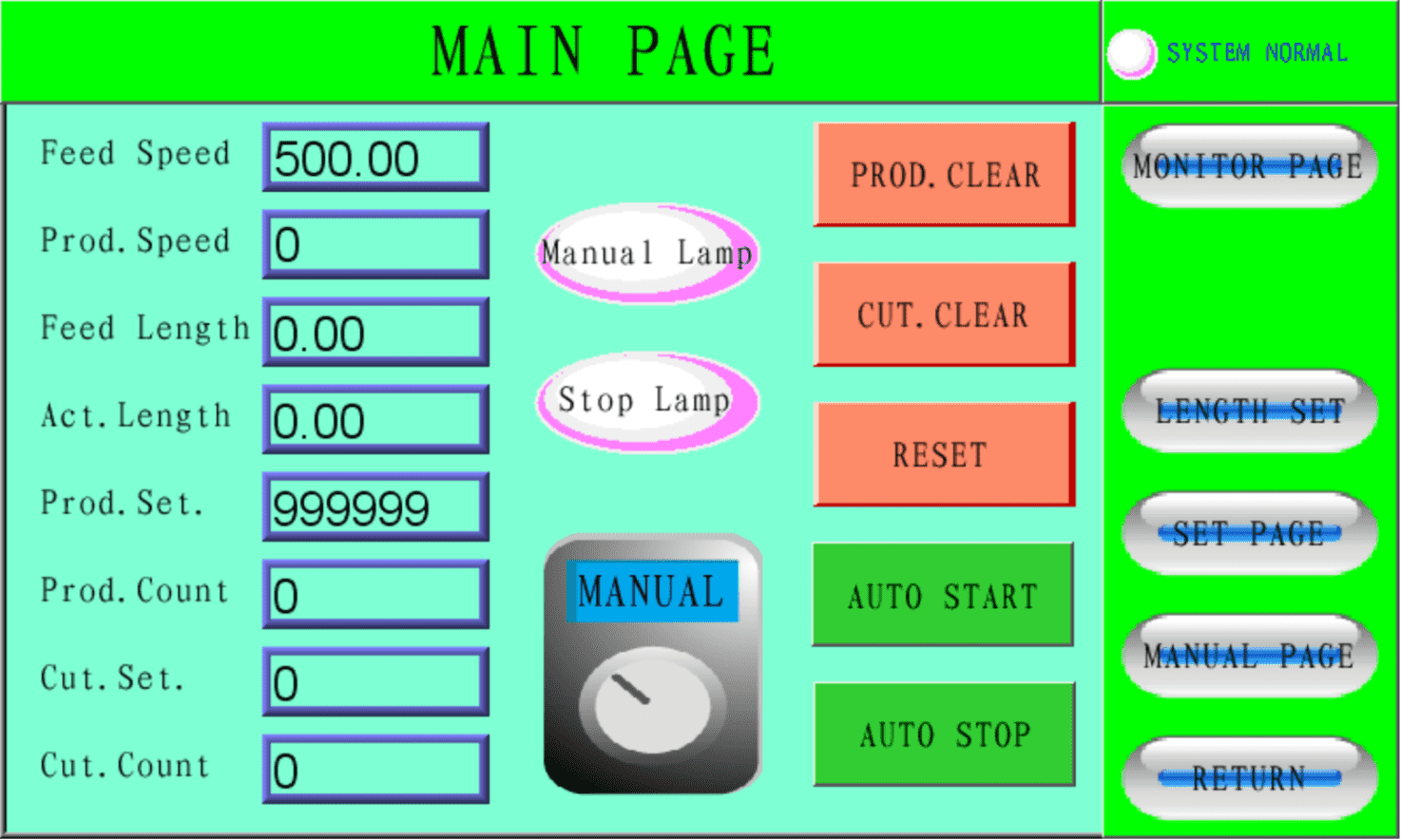

Kontrol NC. Mitsubishi PLC dengan inverter. Motor servo Yaskawa. Operator dapat mengatur kecepatan makan dan panjang makan melalui layar sentuh. Kecepatan makan maksimum 20m / menit.
Spesifikasi pengumpan Coil NC:
| model nomor | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Ketebalan bahan | 0,2-2,2 mm
|
| Lebar material | 100 mm | 200 mm | 300mm | 400 mm | 500mm | 600 mm | 700mm | 800mm |
| Max. panjang makan | 9999mm
|
| Kecepatan makan | 20m / menit
|
| PLC | MITSUBISHI
|
| Motor servo | YASKAWA
|
| Jenis rilis | Mekanis | Mekanis / pneumatik | pneumatik
|
| model nomor | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 | NCF-1000 |
| Ketebalan bahan | 0,2-3,2 mm
|
| Lebar material | 100 mm | 200mm | 300mm | 400 mm | 500mm | 600 mm | 700mm | 800mm | 1000mm |
| Max. panjang makan | 9999mm
|
| Kecepatan makan | 20m / menit
|
| PLC | MITSUBISHI
|
| Motor servo | YASKAWA
|
| Jenis rilis | Mekanis | Mekanis / pneumatik
| pneumatik
|
| model nomor | NCF-100 | NCF-200 | NCF-300 | NCF-400 | NCF-500 | NCF-600 | NCF-700 | NCF-800 |
| Ketebalan bahan | 0,2-4,5 mm
|
| Lebar material | 100 mm | 200mm | 300mm | 400 mm | 500mm | 600 mm | 700mm | 800mm |
| Max. panjang makan | 9999mm
|
| Kecepatan makan | 20m / menit
|
| PLC | MITSUBISHI
|
| Motor servo | YASKAWA
|
| Jenis rilis | Mekanis | Mekanis / pneumatik
| pneumatik
|
